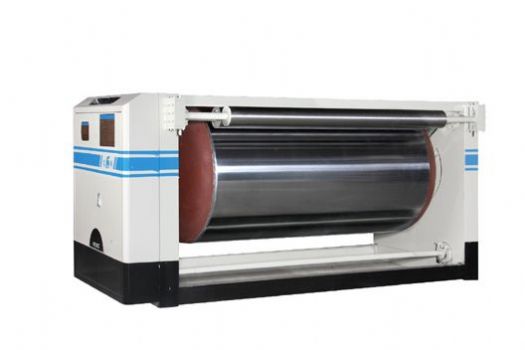

PRE-HEATER (FIXED)

Product Name : PRE-HEATER (FIXED)

Directions

Technical performance and characteristics

1. PRE-HEATER DIAMETER1000mm/1100mm/1200mm。BUTTERFLY HEAD MAKES HEATING EQUAL.

2. SURFACE CAN BE ROTARY-ADJUSTED ACCORDING TO THE ABRASION DEGREE.

3. MADE ACCORDING TO NATIONAL STANDARD OF PRESSURE CONTAINER I, TEST CERTIFICATE IS FOLLOWED.

4. PAPER GUIDE ROLL: φ140mm, ONE FIXED, THE OTHER TRAVELS OUTSIDE OF PREHEATING ROLL TO CONTROL THE HEATING SURFACE. THE PARALLELISM OF THE TRAVEL PAPER GUIDE ROLL CAN BE ADJUSTED.

5. WITH 0.55KW MOTOR AND WORM WHEEL DECELERATOR

PH100
