Technical performance and characteristics

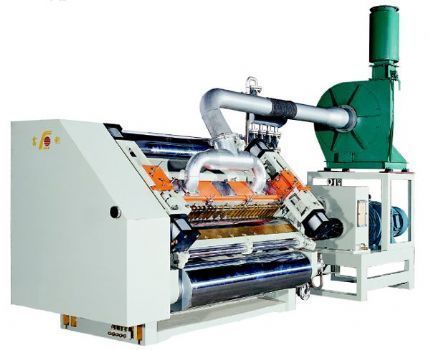

MODEL: SF12N

AVAILABLE BREADTH: 1400-1800MM

SPECIFICATION:

1.         FINGERLESS VACUUM SUCTION

2.         MAX MACHINE SPEED:120M/MIN

3.         DIAMETER OF CORRUGATING ROLLS: 280MM

4.         DIAMETER OF GLUE ROLL: 215MM；

5.         EQUIPPED WITH PREHEAT ROLLS FOR LINER & MEDIUM

6.         LIFTING OF UPPER CORRUGATING ROLL, PRESSURE ROLL AND GLUE ROLL PNEUMATIC CONTROLLED

7.         BEARINGS OF CORRUGATING ROLLS AND PRESSURE ROLLS USE HIGH TEMPERATURE LUBRICATE GREASE

8.         GLUE DIVIDING DEVICE MOTORIZED, EASY TO ADJUST BREADTH

9.         POWER OF MAIN MOTOR: 18.5KW (WIDTH 1200-1400MM)/ 22KW (WIDTH 1600-1800MM)

10.     POWER OF SUCTION BLOWER: 7.5KW(WIDTH 1200-1400MM)/ 11KW (WIDTH 1600-1800MM)

11.     INDEPENDENT GEAR BOX, GIMBAL AXIS, OIL IMMERSED TYPE LUBRICATING TO REDUCE NOISE, KEEP RUNNING STABLE

12.     MAIN CONTROLLER AND LEFT-RIGHT MOVING OF RELATED ROLL STAND LINKAGE CONTROLLED
