Technical performance and characteristics

MODEL: PHD100/PH110/PH120; PHT100 / PHT110 / PHT120; PHQ100 / PHQ110 / PHQ120

AVAILABLE BREADTH: 1400-2200MM

SPECIFICATION:

1.         PRE-HEATER DIAMETER1000mm/1100mm/1200mm. BUTTERFLY HEAD MAKES HEATING EQUAL.

2.         SURFACE CAN BE ROTARY-ADJUSTED ACCORDING TO THE ABRASION DEGREE.

3.         MADE ACCORDING TO NATIONAL STANDARD OF PRESSURE CONTAINER I, TEST CERTIFICATE IS FOLLOWED.

4.         PAPER GUIDE ROLL: φ140mm, THREE FIXED, THE OTHER THREE TRAVEL OUTSIDE OF PREHEATING ROLL TO CONTROL THE HEATING SURFACE. THE PARALLELISM OF THE TRAVEL PAPER GUIDE ROLL CAN BE ADJUSTED.

5.         WITH 0.55KW/0.75KW MOTOR AND 3 SETS OF WORM WHEEL DECELERATOR

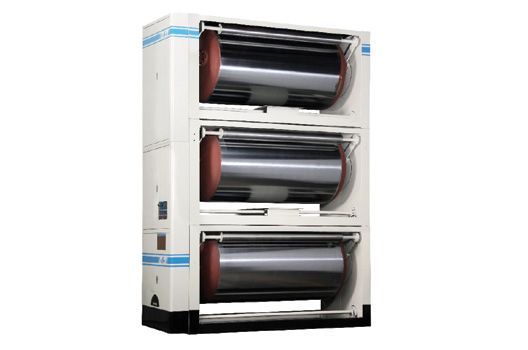

PHT100
