CHINA X.L. MACHINERY CO., LTD

Technical performance and characteristics

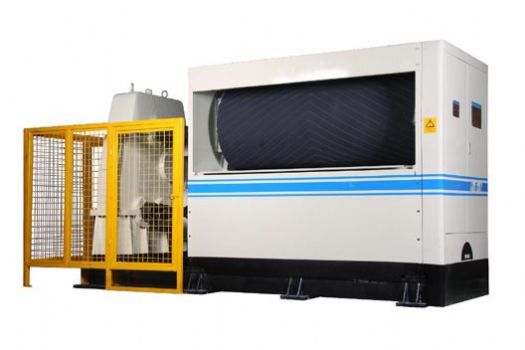

MODEL: DRS23

AVAILABLE BREADTH: 1400-2000MM

SPECIFICATION:

1.       MAX MACHINE SPEED: 230M/MIN

2.       DOUBLE AXES DRIVEN, INDEPENDENT GEAR CASE (SEPARATED TO BE 3 PARTS), EASY TO MAINTAIN

3.       GEAR MADE OF CHROME STEEL, GRINDED OBLIQUE TOOTH, WHICH MAKE DRIVEN STABLY AND IMPACT NOISE LOW

4.       DIAMETER OF UPPER DRIVE ROLL:883MM; LOWER DRIVE ROLL:703MM

5.       DRIVE ROLL CAST OF VULCANIZED RUBBER, WITH CHEVRON-NOTCH, ABRADE-RESISTANCE DURABLE, WITH CROWN TO MAKE PAPER BOARD DELIVERY SMOOTHLY

6.       ROLL DESIGNED TO BE EASY UNLOAD, SO IT’S EASY TO MAINTAIN AND CHANGE

7.       WITH FREQUENCY CONVERT MOTOR, POWER：55/75/90KW，TO MAKE STEPLESS SPEED REGULATION AND SYNCHRONIC LINKAGE WITH OTHER MACHINES. MOTOR POWER DECIDED BY BREADTH AND NUMBER OF HEATING PLATES.

8.       SOLEPLATE DESIGN HAS BEEN IMPROVED TO MAKE THE WHOLE MACHINE MORE STABLE
