Technical performance and characteristics

MODEL: PHTR100/PHTR110/PHTR120, PHQR100/PHQR110/PHQR120

AVAILABLE BREADTH: 1600-2500MM

SPECIFICATION:

1.       PRE-HEATER DIAMETER1000MM/1100 MM / 1200 MM. BUTTERFLY HEAD MAKES HEATING EQUAL.

2.       PRE-HEATER DESIGNED TO BE ROTARY AS A FIXED SPEED, WHICH MAKES TH TEMPERATURE OF THE SURFACE EQUAL AND PASS THE HEAT TO THE PAPER COMPLETELY, AND ALSO REDUCE HEAT LOSS AND MAKE THE PAPER NOT EASY TO BE BROKEN OFF.

3.       FLANGE IS USED FOR STEAM ROTARY JOINT.

4.       MADE ACCORDING TO NATIONAL STANDARD OF PRESSURE CONTAINER I, TEST CERTIFICATE IS FOLLOWED.

5.       PAPER GUIDE ROLL: φ140mm, THREE FIXED, THE OTHER THREE TRAVEL OUTSIDE OF PREHEATING ROLL TO CONTROL THE HEATING SURFACE. THE PARALLELISM OF THE TRAVEL PAPER GUIDE ROLL CAN BE ADJUSTED

6.       WITH 0.55KW/0.75KW MOTOR AND 6 SETS OF WORM WHEEL DECELERATOR

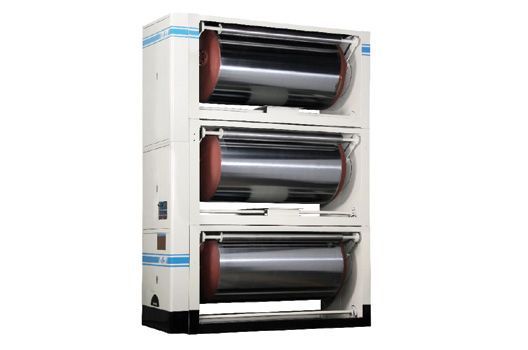

PHTR100
