Corrugated Paper Production li

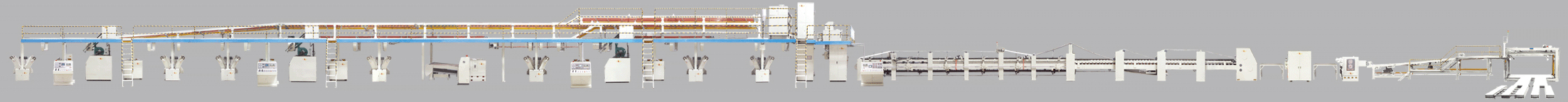

      The Corrugated Paper Production line is comprised of the following parts:raw paperholder,heating tunnel,paper splicing device,single surface corrugating machine,crane,multi-phase pre-heater,Floder gluer machine,dual surface heating and forming machine,line pressing paper dividing machine,traverse cutter,stacking machine and boiler.The raw paper is fed from the raw paper holder,passing through tunnel,where the paper is heated and the moisture inside the paper is adjuested.Then the paper is sent into the Single faced corrugating device and is corrugated and shape-formed,here the single surface corrugated paper is adhered to another paper,forming single surface corrugated paper.After that,by the crane the paper is sent to and re-heated by themulti-phase pre-heater.The glue putting machine puts glue onto the paper,and the glued paper is sent to the dual surface heating and forming machine,at this moment the final corrugated paper is formed and outputted continuously.The formed paper then pass through the cutting paper is stacked,assorted,and counted by the stacking machine,and you willsee the final products outputted by this whole line continuously.

  Equipment: Main unit. Pulping machine. raw paper stand. horizontal cutting machine. optional according to different requlrement ana slte.

  Paper output speed :200 m/ min.

  Production Breadth:1200-2200mm

  Heat the way:Steam,Coal gas.

  Total IPnoht between 80 to 105m.
