CHINA X.L. MACHINERY CO., LTD

Technical performance and characteristics

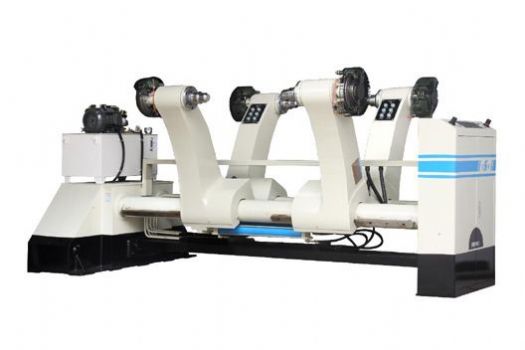

ITEM: HYDRAULIC ROLL STAND

MODEL: RSH150

AVAILABLE BREADTH: 1400-2200MM

SPECIFICATION:

1.         MAX. PAPER ROLL DIAMETER: 1500 MM; MIN PAPER ROLL DIAMETER: 300MM

2.         EXPANDING CLIPS

3.         OPEN-CLOSE, LIFTING AND LOWERING, RIGHT-LEFT ADJUSTMENTS OF ARMS ARE OPERATED BY HYDRAULIC SYSTEM. DOUBLE WORK POSITION DESIGN.

4.         HYDRAULIC STATION MOTOR POWER:3.7KW

5.         HYDRAULIC STATION CLIQUES FROM TAIWAN

6.         DIAMETER OF LIFT OIL CONTAINER: 100MM

7.         DIAMETER OF LEVEL OIL CONTAINER: 63MM(BREADTH<=1800MM) OR 80MM(BREADTH>1800MM)

8.         BRAKE DEVICE ADOPT THE STANDARD OF CAR INDUSTRY, MULTI-POINT BRAKE DISC IS DELICATE, FORCE EQUALITY, STEADY, LONGEVITY, SIMPLY REPLACED, WHICH CAN BE BOTH MANUAL-CONTROLLED AND SPLICER-CONTROLLED
