Technical performance and characteristics

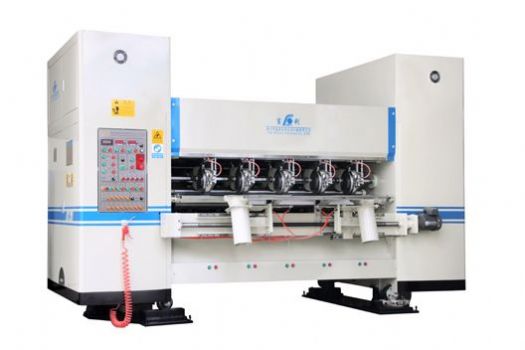

MODEL: NSS46G 、NSS58G、NSS60G

AVAILABLE BREADTH: 1400-2200MM

SPECIFICATION:

1.         SLITTING CAPACITY: 3 OUTS (SLITTING TOOL: 4 SETS, SCORING TOOL: 6 SETS), 4 OUTS (SLITTING TOOL: 5 SETS, SCORING TOOL: 8 SETS), 5 OUTS (SLITTING TOOL: 6 SETS, SCORING TOOL: 10 SETS)

2.         SLITTING LINEAR VELOCITY: 630-900M/MIN

3.         OUTSIDE DIAMETER OF THE SLITTING TOOL: 260 MM (THIN BLADE), DIAMETER OF THE SCORING TOOL: 190 MM, MINIMUM SLITTING SIZE: 150 MM

4.         MINIMUM SCORING SIZE: 0. THERE ARE THREE SCORING MODES: MALE TO FEMALE, MALE-TO-MALE, AND MALE TO FLAT FOR OPTIONAL

5.         SLITTING AND SCORING SIZE ARE ADJUSTED BY ELECTRIC MOTOR. MAXIMUM SETTING: 8 SECONDS

6.         WITH A 5.5 KW MOTOR FOR SCORING TOOL, AND A 7.5 KW MOTOR FOR SLITTER, SYNCHRONOUSLY RUNNING WITH DOUBLE BACKER WHEN CONNECTED

7.         THE MACHINE CAN MOVE RIGHT OR LEFT WHICH CONTROLLED BY ELECTRIC MOTOR

8.         THE ADJUSTMENT FOR UPPER SLITTING AND SCORING TOOLS IS CONTROLLED BY PNEUMATIC SYSTEM AND ORDERS CAN BE EASILY CHANGED DURING THE MACHINE RUNNING WITHOUT STOPPING IT

9.         AUTO GRINDING AND LUBRICATE TO MAKE BLADES AVOID OF DISASSEMBLE AND STAINED WHEN LUBRICATING
