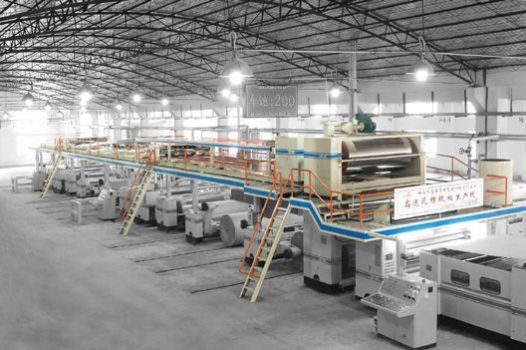

OVER BRIDGE

OVER BRIDGE.jpg

Technical performance and characteristics

MODEL: BC3/BC5/BC7J/BC7

AVAILABLE BREADTH: 1400-2500MM

SPECIFICATION:

1.         20A CHANNEL STEEL MAIN GIRDER, 14A CHANNEL STEEL VICE GIRDER, PILLAR AND BEAM MADE OF STEEL 15

2.         WITH SAFETY RAILS, STAIRCASES AND BOARD TO INSURE OPERATOR SAFETY AND ALSO MAKE EASY TO OPERATE

3.         STEEL TUBE DIA OF SAFETY GUARD 42MM. THERE ARE 7 SETS OF ALVEOLAR PLATES FOR HOLDING PAPER OF WIDTH 1.8M MACHINE

4.         THERE ARE CLOSING BOARD IN 3 SIDES OF THE BRIDGE, DISTANCE BETWEEN TREAD-BOARD AND GROUND IS 2750MM

5.         GLUE BARREL OF SINGLE FACER AND GLUE MACHINE LOCATED ON THE OVERHEAD BRIDGE

6.         ALL STRAP AXLE AND PAPER GUIDING ROLLS SURFACE ARE CHROME-PLATED

7.         KEEP SPACE FOR AUTO SPLICER
