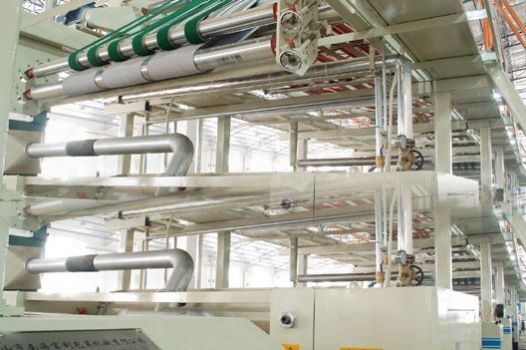

Technical performance and characteristics

MODEL: HB18、HB23

AVAILABLE BREADTH: 1400-2500MM

SPECIFICATION:

1.       AVAILABLE FOR SINGLE FACER WHOSE MAX SPEED IS 180M/MIN(HB18), 230M/MIN(HB23)

2.       TRACTION GOING-UP MOTOR POWER 3/4/5.5KW (DECIDED BY THE BRIDGE FLAT SENDING LENGTH). DRIVEN BY INDEPENDENT FREQUENCY CONVERSION MOTOR, SYNCHRONIZED  WITH SINGLE FACER

3.       THE FIRST TRACTION FLAT SENDING OF 7-LAYER AND F7-LAYER PRODUCTION LINE EQUIPPED WITH FLAT SENDING MOTOR TO LENGTHEN THE SENDING DISTANCE

4.       APPROPRIATE SPEED PROPORTION MAKES CORRUGATED PAPER STAKED IN ORDER

5.       COTTON BELT IS USED FOR UP-TRACTION, WHICH HAS APPROPRIATE FRICTION AND GOOD VENTILATION

6.       SYNCHRONIZED BELT DRIVEN, DRIVE STABLY AND ACCURATE( ONLY AVAILABLE FOR HB23)

7.       THERE IS TRAP WITH GRAIN AT BOTH ABOVE AND BELOW PAPER OUT POSITION OF THE UP-TRACTION, WHICH CAN PREVENT THE CORRUGATED PAPER FROM OVERTURN AND ALSO KEEP THE STAKING IN ORDER IN HIGH SPEED. ( ONLY AVAILABLE FOR HB23)
