Technical performance and characteristics

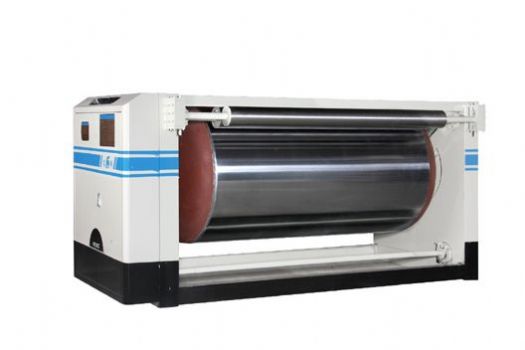

MODEL: PHR100/PHR110/PHR120

AVAILABLE BREADTH: 1600-2500MM

SPECIFICATION:

1.         PRE-HEATER DIAMETER1000MM/1100MM/1200MM. BUTTERFLY HEAD MAKES HEATING EQUAL.

2.         PRE-HEATER DESIGNED TO BE ROTARY AS A FIXED SPEED, WHICH MAKES TH TEMPERATURE OF THE SURFACE EQUAL AND PASS THE HEAT TO THE PAPER COMPLETELY, AND ALSO REDUCE HEAT LOSS AND MAKE THE PAPER NOT EASY TO BE BROKEN OFF.

3.         FLANGE IS USED FOR STEAM ROTARY JOINT.

4.         MADE ACCORDING TO NATIONAL STANDARD OF PRESSURE CONTAINER I, TEST CERTIFICATE IS FOLLOWED.

5.         PAPER GUIDE ROLL: φ140mm, ONE FIXED, THE OTHER TRAVEL OUTSIDE OF PREHEATING ROLL TO CONTROL THE HEATING SURFACE. THE PARALLELISM OF THE TRAVEL PAPER GUIDE ROLL CAN BE ADJUSTED

6.         WITH 0.55KW/0.75KW MOTOR AND 2 SETS OF WORM WHEEL DECELERATOR

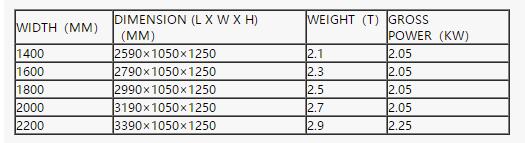

PHR100
