Technical performance and characteristics

Specification：

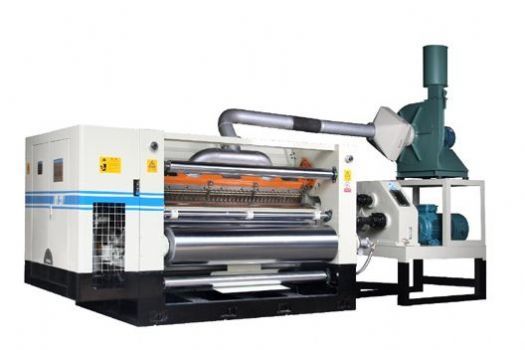

MODEL: SF22NA

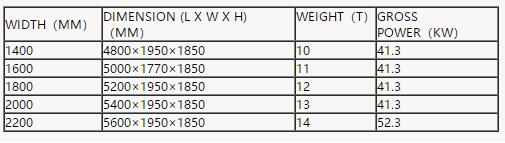

AVAILABLE BREADTH: 1400-2200MM

SPECIFICATION:

1.         FINGERLESS VACUUM SUCTION

2.         MAX MACHINE SPEED: 200M/MIN

3.         CORRUGATING ROLL DIAMETER 380MM. UPPER CORRUGATING ROLLS AND LOWER CORRUGATING ROLLS CAN BE INSTALLED AND REMOVE AS A UNIT, EASY TO BE CHANGED

4.         GLUE ROLL DIAMETER 302MM, STATION CAN BE REMOVED AS A UNIT.

5.         PLC AUTO GLUE MIX SYSTEM

6.         LIFTING OF UPPER CORRUGATING ROLL AND PRESSURE ROLL, MOVING OF GLUE DEVICE PNEUMATIC CONTROLLED

7.         EQUIPPED WITH PRE-HEATER ROLL BOTH FOR LINER AND MEDIUM, AND ALSO STEAM SPRAY DEVICE FOR MEDIUM

8.         INDEPENDENT GEAR BOX, GIMBAL AXIS, OIL IMMERSED TYPE LUBRICATING TO REDUCE NOISE, KEEP RUNNING STABLE

9.         WITH FREQUENCY CONVERT MOTOR TO MAKE STEPLESS SPEED REGULATION AND SYNCHRONIZED LINKAGE WITH FOLLOWING MACHINES. FREQUENCY CONVERT MOTOR IS FROM INTERNATIONAL FAMOUS BRAND WITH RELIABLE PERFORMANCE

10.     POWER OF MAIN MOTOR: 30KW (WIDTH 1400-2000MM)/ 37KW (WIDTH >2200MM)

11.     POWER OF SUCTION BLOWER: 11KW(WIDTH 1400-2000MM)/ 15KW (WIDTH >2200MM)

12.     MAIN CONTROLLER AND LEFT-RIGHT MOVING OF RELATED ROLL STAND LINKAGE CONTROLLED
